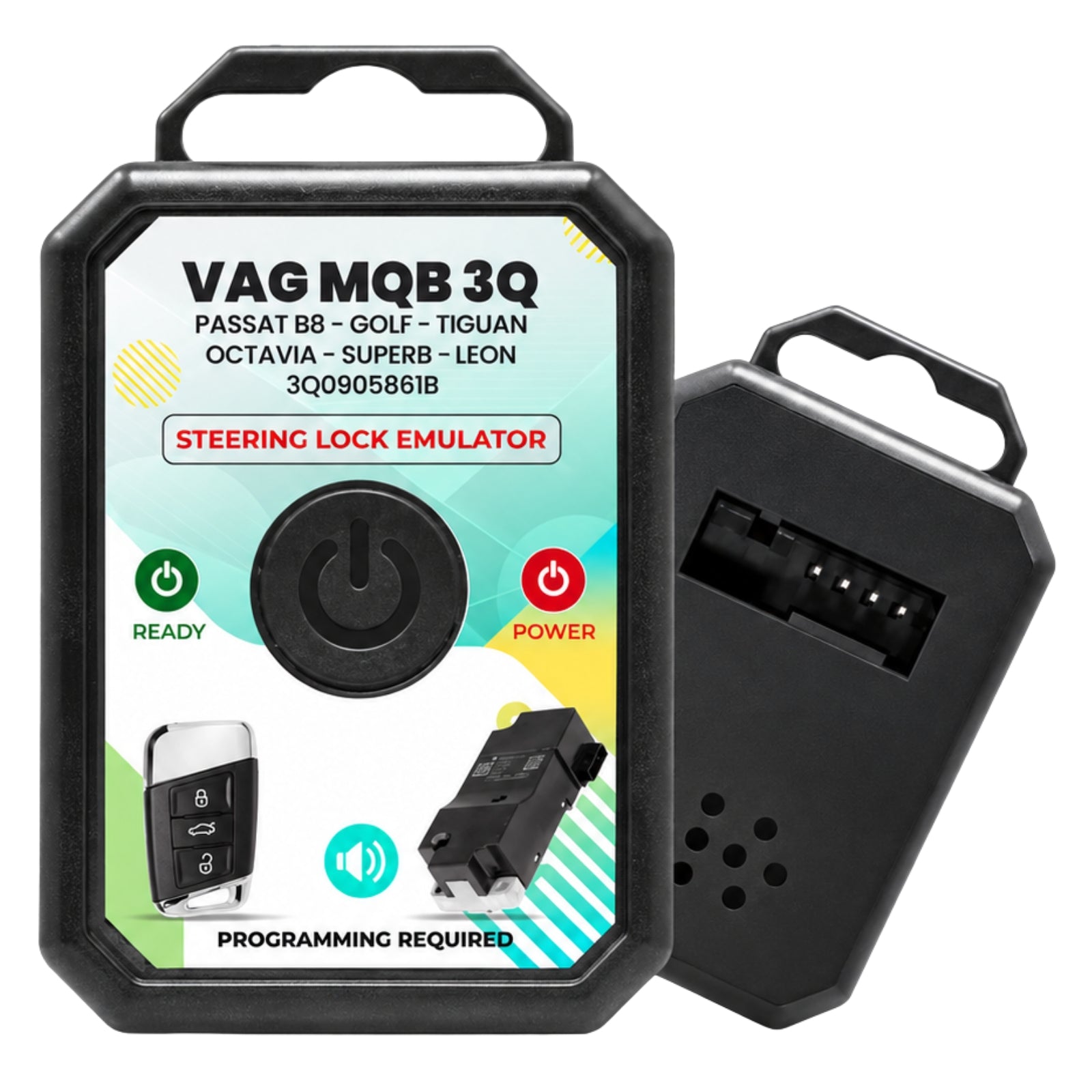

VAG MQB 3Q ESL/ELV Steering Lock Emulator for VW Passat B8, Skoda Octavia & SEAT

How this emulator is used:

1. Remove the Steering Lock: Begin by carefully removing the steering lock from the vehicle.

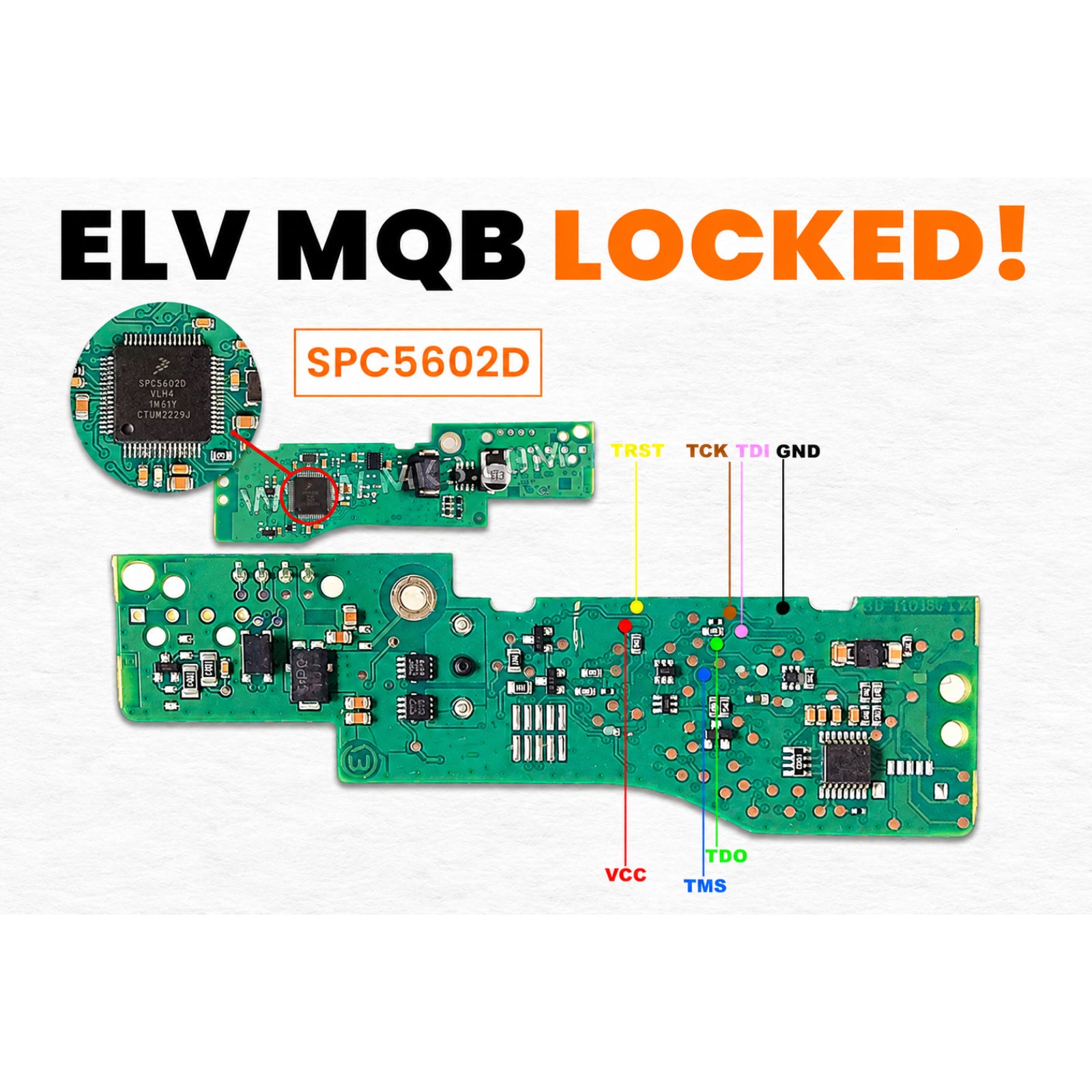

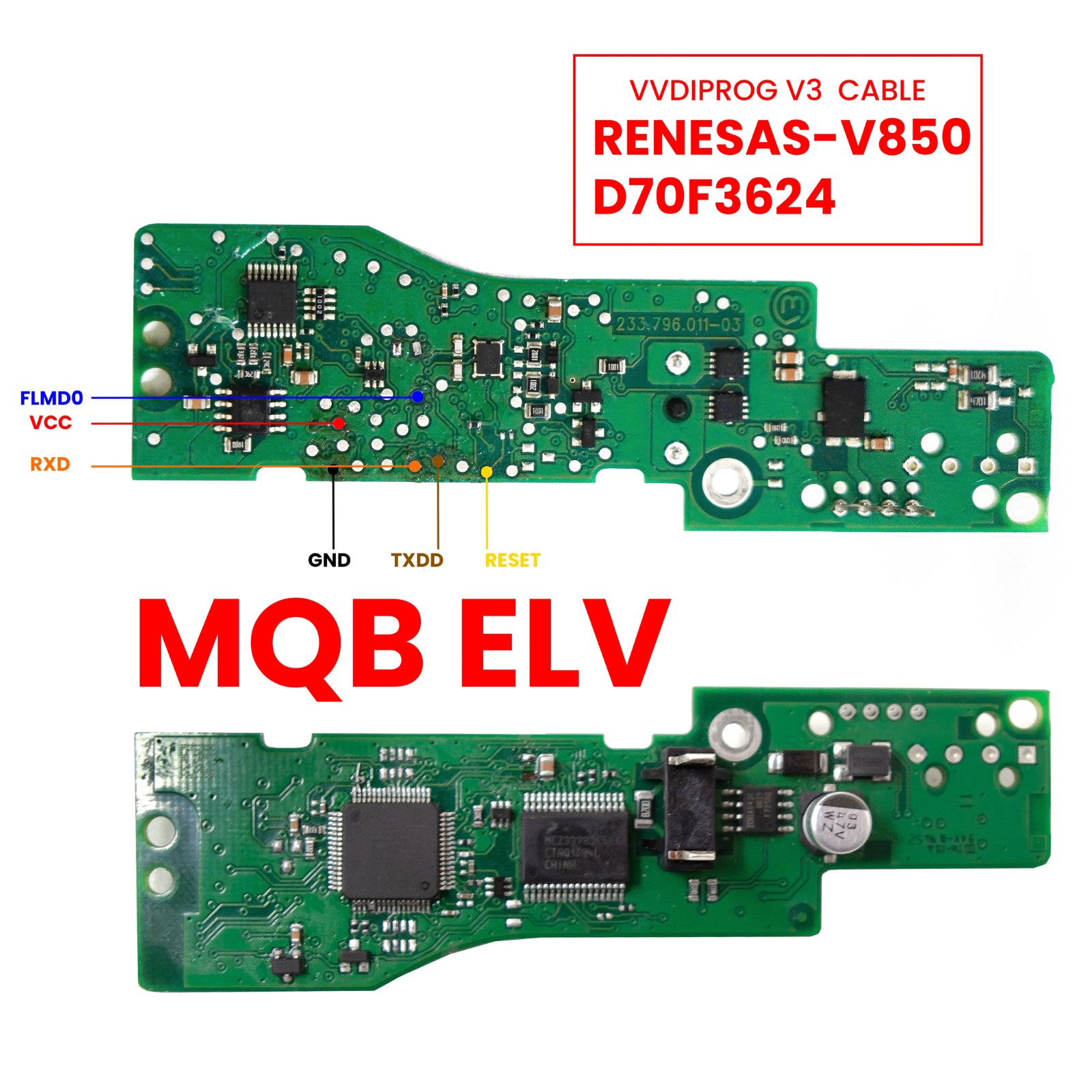

2. Read Steering Lock Data: Use a VVDI PROG or any compatible device that supports reading the ELV (Electronic Steering Lock) to extract the steering lock data.
3. Process the Data: Open the extracted file using the MK3 Programmer application (software only, no physical device required). Save the file, then write the new file to the emulator (Eeprom 24LC256).

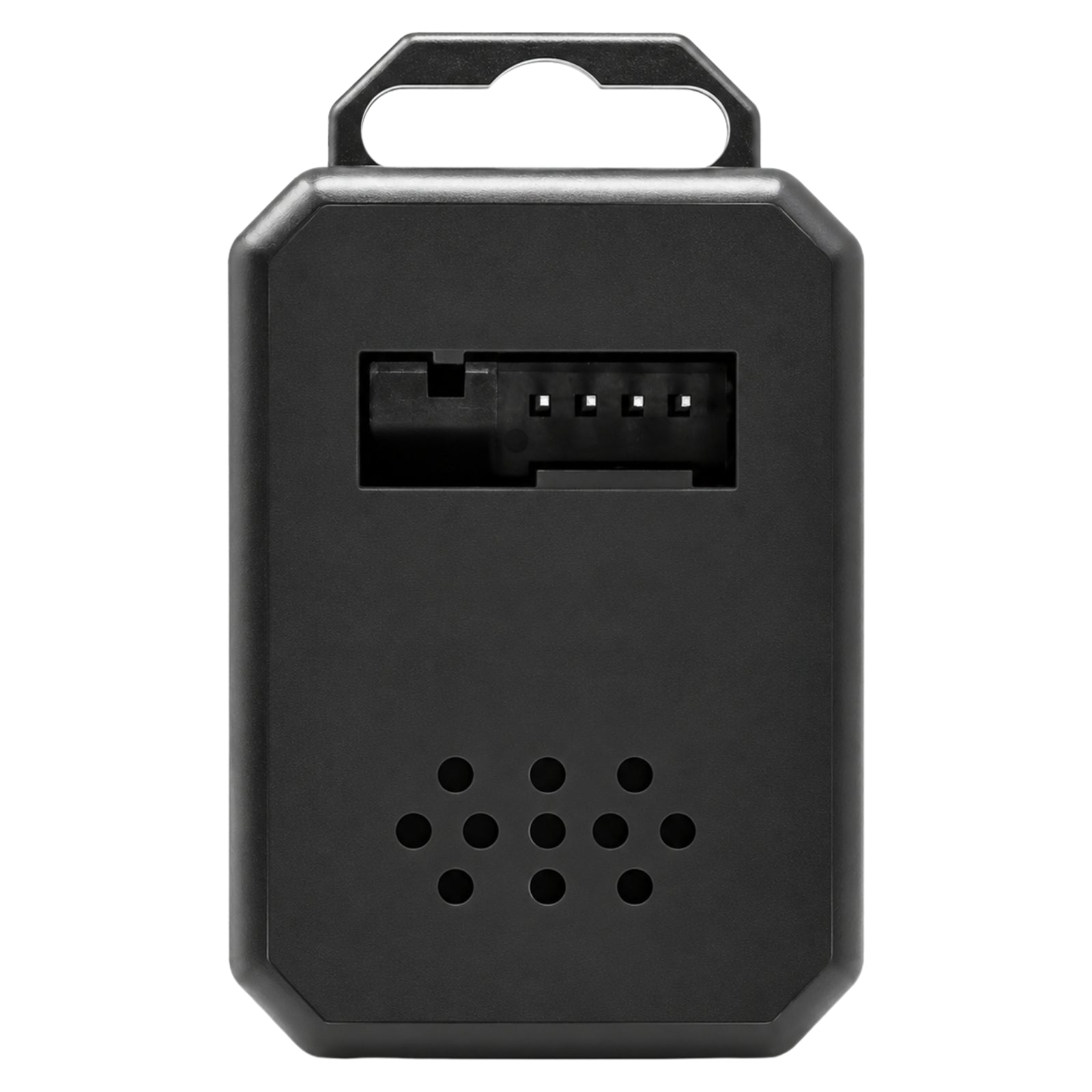

4. Install the Emulator: Plug in the emulator. The green and red lights will blink together for approximately 15 seconds until only the red light remains. Once the red light is steady, the system is ready, and you can start the car.

Compatible Part Number:

• 3Q0905861B

Vehicle Coverage:
